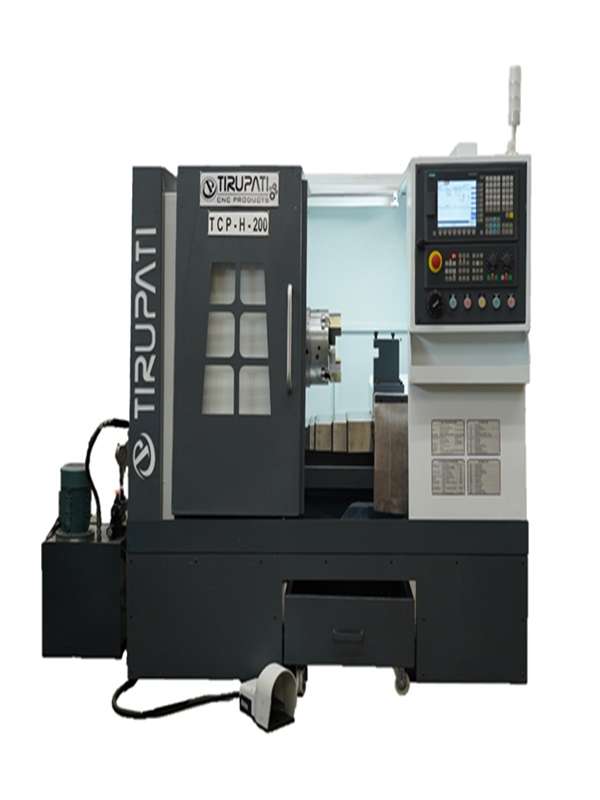

TCP-H-200L CNC Lathe Machine

The TCP-H-200L CNC Lathe Machine is a versatile and high-precision machine tool designed for various turning and machining applications. With a maximum turning diameter of 200mm and a spindle speed of up to 1500 RPM, it offers excellent performance and accuracy. Equipped with a Siemens, Fanuc, or Mitsubishi controller, the TCP-H-200L provides precise control and easy operation.

The TCP-H-200L CNC Lathe Machine is a powerful and reliable machine tool capable of handling a wide range of turning and machining tasks. Its robust construction and advanced features ensure exceptional performance and accuracy.

Specifications:

  • Capacity: Maximum turning diameter of 200mm, standard turning diameter of 150mm, and turning length of 300mm to 1000mm.
  • Spindle: Spindle nose A2-5, max. bar capacity of 25mm, spindle speed of up to 1500 RPM, and spindle motor power of 7.5HP.
  • Axes: X-axis stroke of 100mm with rapid movement of 8 m/min, Z-axis stroke of 300mm to 1000mm with rapid movement of 8 m/min.
  • Tooling: Pragati turret with 4 stations, maximum boring bar diameter of 32mm, and turning tool size of 25x25mm.
  • Lubrication: Automatic lubrication system.
  • Controller: Siemens, Fanuc, or Mitsubishi.
  • Base type: Shimoga.
  • Accuracy: 0.05.
